Glass Ball Manufacturer & Supplier in China — Soda Lime & Borosilicate, Φ1 mm to 25 mm, Tolerance from ±0.002 mm
We produce high-precision solid soda lime and borosilicate glass balls as a China-based manufacturer with our own glass plant in Kaifeng, Henan Province.
Sizes run from Φ1 mm to Φ25 mm, with tolerances from ±0.002 mm on precision grades through to ±0.25 mm on grinding grades, and a nominal density of 2.4 g/cm³.
A polished glass ball seals extremely well, which is why the main use is check valves and ball valves in lotion pumps, sprayers, roll-on bottles, aerosol cans, metering pumps and flow meters — plus ink cartridges, optic fibre devices, cosmetic frosted balls and bottle cap balls.
Both materials are available in a range of colours and in polished or matte finish, lightweight against steel and stainless steel.
Custom sizes, tolerances, colours, whiteness and finishes are available for wholesale and OEM/ODM orders, with production video of the line available on request.
Types of Soda Lime Glass Ball
-
2mm Glass BallItem:2mm Glass Ballview more
Material:Soda Lime/Borosilicate glass
Size:φ1.0mm-25mm
Tolerance:±0.02mm/±0.002mm
Density:2.4g/cm3
Application:1. lotion pump,sprayer,roll on bottle,valves.
2. Children's toy ball Sprayers... -
Small Glass SpheresItem:Small Glass Spheresview more
Material:Soda Lime/Borosilicate glass
Size:φ1.0mm-25mm
Tolerance:±0.02mm/±0.002mm
Density:2.4g/cm3
Application:1. lotion pump,sprayer,roll on bottle,valves.
2. Children's toy ball... -
Mini Glass BallItem:Mini Glass Ballview more
Material:Soda Lime/Borosilicate glass
Size:φ1.0mm-25mm
Tolerance:±0.02mm/±0.002mm
Density:2.4g/cm3
Application:1. lotion pump,sprayer,roll on bottle,valves.
2. Children's toy ball Sprayers... -
Nozzle Glass BallItem:Nozzle Glass Ballview more
Material:Soda Lime/Borosilicate glass
Size:φ1.0mm-25mm
Tolerance:±0.02mm/±0.002mm
Density:2.4g/cm3
Application:1. lotion pump,sprayer,roll on bottle,valves.
2. Children's toy ball Sprayers... -
Precision Polished Glass BallItem:Precision Polished Glass Ballview more
Material:Soda Lime/Borosilicate glass
Size:φ1.0mm-25mm
Tolerance:±0.02mm/±0.002mm
Density:2.4g/cm3
Application:1. lotion pump,sprayer,roll on bottle,valves.
2. Children's toy... -
Solid Glass BeadItem:Solid Glass Beadview more
Material:Soda Lime/Borosilicate glass
Size:φ1.0mm-25mm
Tolerance:±0.02mm/±0.002mm
Density:2.4g/cm3
Application:1. lotion pump,sprayer,roll on bottle,valves.
2. Children's toy ball Sprayers... -
Aerosol Can Glass BallItem:Aerosol Can Glass Ballview more
Material:Soda Lime/Borosilicate glass
Size:φ1.0mm-25mm
Tolerance:±0.02mm/±0.002mm
Density:2.4g/cm3
Application:1. lotion pump,sprayer,roll on bottle,valves.
2. Children's toy ball... -
Solid Glass BallItem:Solid Glass Ballview more
Material:Soda Lime/Borosilicate glass
Size:φ1.0mm-25mm
Tolerance:±0.02mm/±0.002mm
Density:2.4g/cm3
Application:1. lotion pump,sprayer,roll on bottle,valves.
2. Children's toy ball Sprayers... -

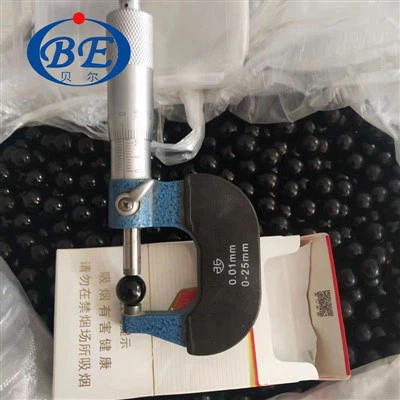

Precision Glass BallItem:Precision Glass Ballview more
Material:Soda Lime/Borosilicate glass
Size:φ1.0mm-16mm
Tolerance:±0.02mm/±0.002mm
Density:2.4g/cm3
Application:1. lotion pump,sprayer,roll on bottle,valves.
2. Children's toy ball... -
Metering Pump Glass BallItem:Metering Pump Glass Ballview more
Material:Soda Lime/Borosilicate glass
Size:φ1.0mm-25mm
Tolerance:±0.02mm/±0.002mm
Density:2.4g/cm3
Application:1. lotion pump,sprayer,roll on bottle,valves.
2. Children's toy ball... -
Glass Sphere BallItem:Material:Soda Lime/Borosilicate glassview more
Size:φ1.0mm-16mm
Tolerance:±0.02mm/±0.002mm
Density:2.4g/cm3
Application:1. lotion pump,sprayer,roll on bottle,valves.
2. Children's toy ball Sprayers ,include check... -
Sprayer Glass BallItem:Sprayer Glass Ballview more
Material:Soda Lime/Borosilicate glass
Size:φ1.0mm-16mm
Tolerance:±0.02mm/±0.002mm
Density:2.4g/cm3
Certification
Thanks to our extensive experience, our qualified and dedicated employees and the implementation of systematic quality management, we are able to ensure consistently high product quality and let our factory already got ISO SGS ROHS REACH certificates.
Quality Assurance
Our technical engineer has over 30 years experience . After finished to produce balls, we will take sample balls from the batch are sent for final audit to check for surface roughness, roundness, waviness, lot size variation and hardness in a sophisticated laboratory, according to specified control plans and dock audit procedures. Once all requirements are met, a test certificate is then prepared for the customer.
Customization
Plastic balls can be customized with non-standard specifications, or with hole design ,color customization and Size customization.
If you need to customize other products, please state your requirements or provide drawings. We will have professional engineers provide you with professional services to meet your requirements.
Soda Lime Glass Ball
Soda Lime Glass Balls are distinguished by their remarkable combination of durability, chemical stability, and optical clarity. Constructed primarily from soda (sodium oxide), lime (calcium oxide), and silica, these glass balls are known for their hardness and resistance to abrasion, making them ideal for applications that involve wear and tear. They also exhibit excellent chemical resistance, ensuring they maintain their integrity even in harsh or reactive environments.
Thermally, Soda Lime Glass Balls can withstand a range of temperatures without significant deformation, adding to their versatility across different applications. Their optical clarity makes them suitable for use in precision instruments, such as flow meters and optical devices, where accurate measurements and visual inspection are crucial. Additionally, their affordability and ease of production contribute to their widespread use in various industrial and decorative applications. Overall, Soda Lime Glass Balls offer a reliable, cost-effective solution for numerous needs, combining functional performance with visual appeal.
Soda Lime Glass Balls Specifications
|
Formula |
SiO2 70 /Na2O 15 /CaO 10 /MgO /B2O3 /Al2O3 |
|
Appearance |
Transparent balls |
|
Diameter |
2.0-20 mm |
|
Boiling Point |
2162 °C |
|
Characteristics |
High transparency |
|
Technical Data |
|
|
Hardness |
Mohs 6 |
|
Density |
2.5 g/m3 |
|
Young’s Modulus |
70 GPa |
|
Tensile Strength |
900-1100 MPa |
|
Chemical Composition |
|||||||||
|
%SiO2 |
%Na2O |
%CaO |
%MgO |
%Al2O3 |
%Li2O |
%K2O |
%TiO2 |
%Fe2O3 |
% PbO |
|
63.00-81.00 |
9.00-15.00 |
7.00-14.00 |
6.00 max |
2.00 max |
2.00 max |
1.50 max |
0.80 max |
0.80 max |
0.010 max |
For precision grinding and polishing of bearing pulley glass bead specifications: 3.17mm 3.969mm
4.76mm 7.13mm (accuracy plus or minus 0.02mm)
For ink Rang sum of fine grinding and polishing glass bead specifications: 3.4 mm to 3.5 mm to 2.7 mm 7.93mm(accuracy plus or minus 0.1mm)
For cosmetic pump head polishing glass bead specifications: 2mm to 6mm(accuracy plus or minus 0.25mm)
For grinding and coating glass beads specification: 2mm to 6mm (accuracy plus or minus 0.25mm)
Ground glass ball bearings for cosmetics: 8mm 10mm (accuracy plus or minus 0.04mm)
Used for sparkling glass ball of wine bottle cap: 11mm (accuracy plus or minus 0.25mm)
Used for the fine grinding and polishing of glass ball for atomizer: 9mm 9.5mm 10mm 11mm
