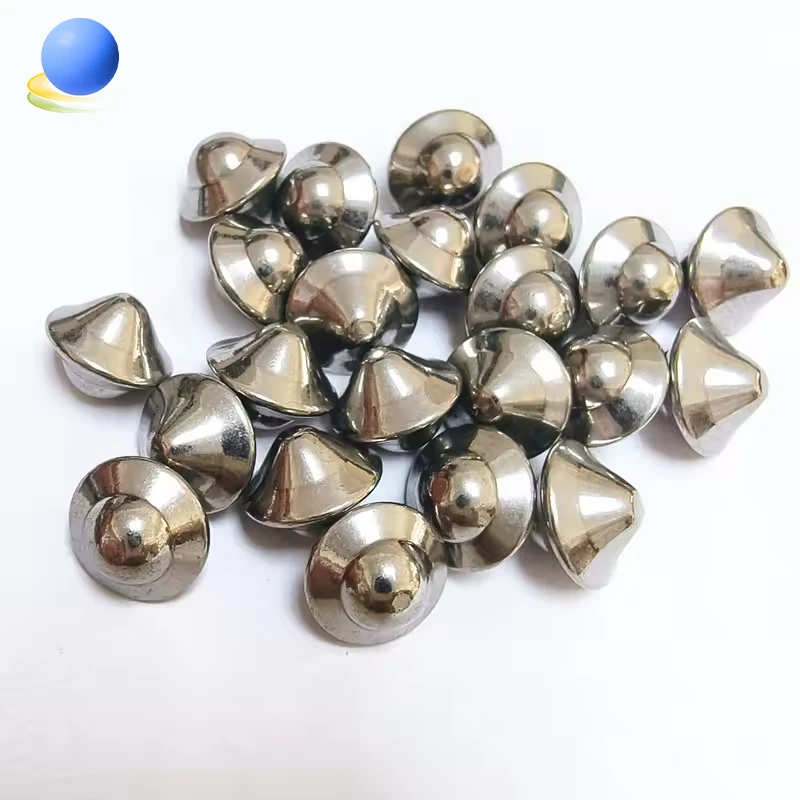

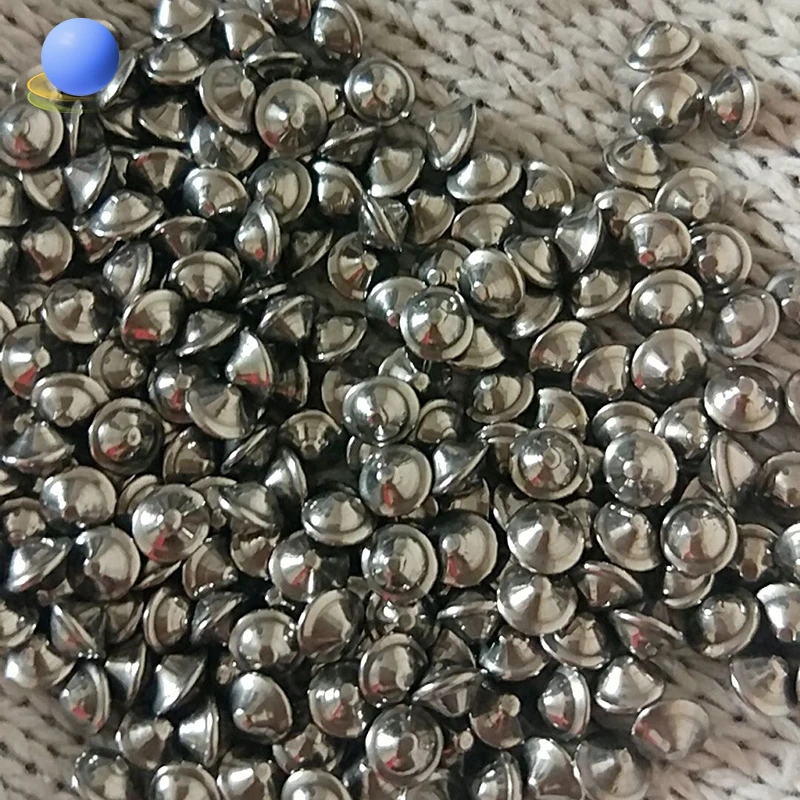

A flying saucer steel ball is a high-polished steel ball formed and ground into a flattened saucer profile: a thin centre with a defined, working rim. In the metal-finishing industry the same product is sold as a UFO ball, satellite ball, saucer media or butterfly ball. Because the rim concentrates pressure on a narrow contact line, saucer media reach into recesses, cross-holes, slots and thread roots that round balls roll straight past. We make them on our own forming, heat-treatment and polishing lines in kaifeng,China and ship them by the kilogram - no trading-company margin in the price.

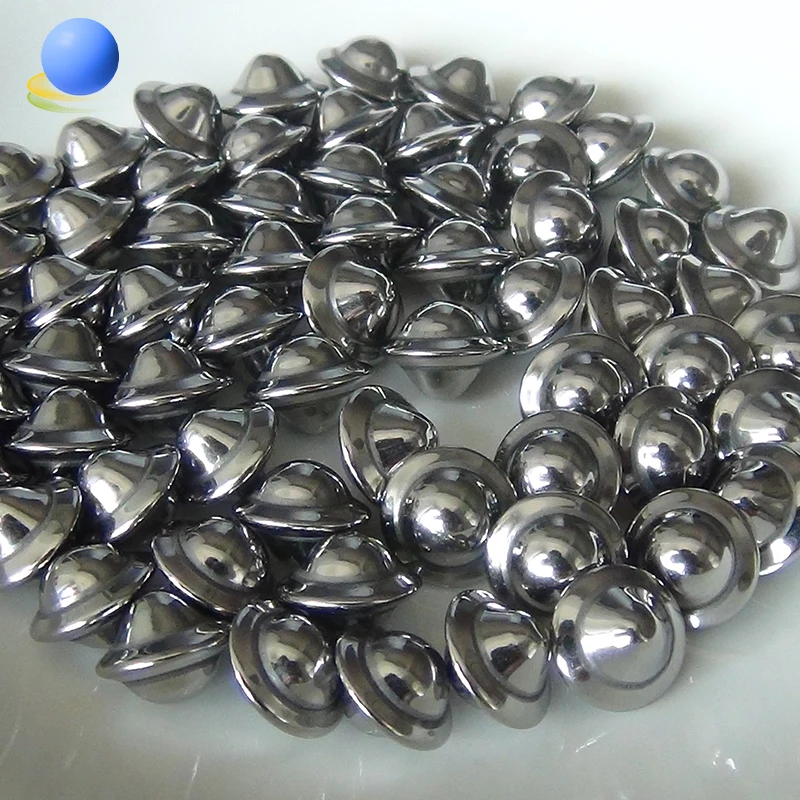

Flying saucer steel ball(satellite ball UFO ball)
.
Why our flying saucer steel balls cost less
Price is the reason most buyers find this page, so here is where the saving comes from:
Sold by the maker. You buy from the production line, not from a reseller. [We are a manufacturer with no intermediate trade links]
One line, all sizes. Sizes from Φ2×3 mm to Φ8×12 mm come off the same tooling, so small trial quantities are not penalised with a setup premium.

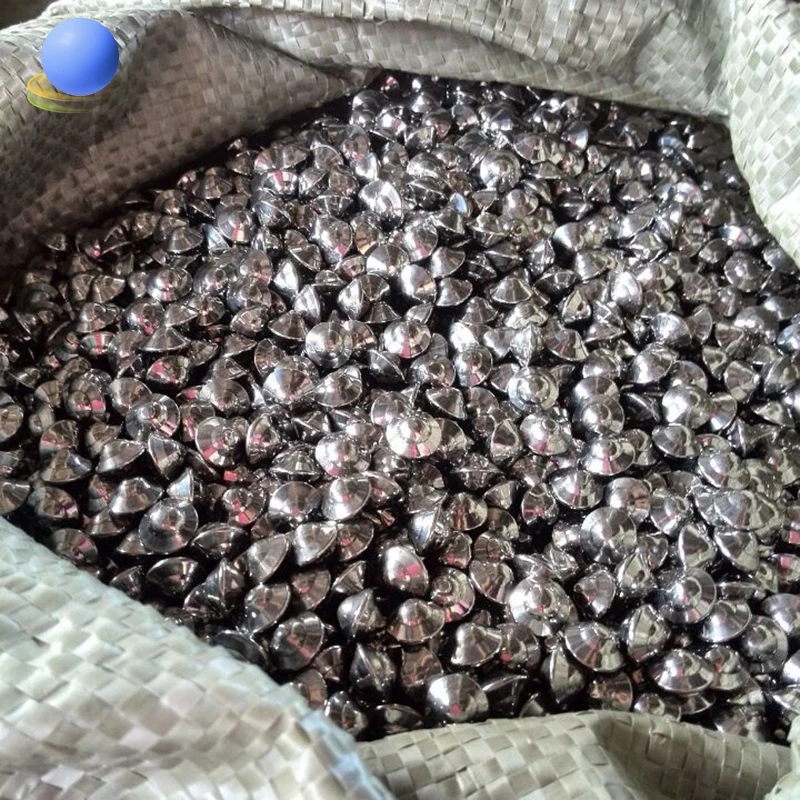

Bulk freight. Orders ship as 25 kg [drum/carton] packed on pallets or as full-container loads, which cuts unit freight cost. [Can be LCL/FCL]
Material choice, not quality choice. Carbon steel gives the lowest cost per kilogram; 201 stainless is the low-cost corrosion-resistant option. Density (7.8 g/cm³) and grade (G100–G1000) stay the same, so a cheaper material does not mean a softer or shorter-lived media in the right application.
| Specifications | |
| Property | Value |
| Density | 7.8 g/cm³ |
| Material | Carbon steel; 201 / 304 / 316 stainless steel; 420 / 420C / 440 / 440C stainless steel |
| Standard sizes (Ø × H) | Φ2×3, Φ2.5×3.5, Φ3×5, Φ3.5×5.5, Φ4×6, Φ5×7, Φ7×10, Φ7×11, Φ8×12 mm |
| Surface | High polished |
| Grade | G100 -G1000 |
| Corrosion resistance | Yes - except carbon steel |
| Hardness | SS201 SS304 SS316 HRC20-25,AISI52100 100CR6 HRC55-66,AISI1015 HRC50-55 |
| Tolerance | "+/-0.025mm |
| Packing | 1) Plastic bag + carton + wooden pallet 2) Plastic bag + steel drum + wooden pallet |
| MOQ | 1 kg (trial) / [25] kg (bulk drum) |
| Certificates | ISO,SGS ,ROHS, |
| Lead time | about 15days |
| Payment | T/T, [Western Union / PayPal / L/C] |
Our Products
Applications
Deburring and polishing irregular workpieces - the edge of the saucer reaches recesses, cross-holes, thread roots and slots that round media cannot.
Bright finishing after rough and intermediate polishing; raises surface brightness noticeably.
Plating preparation - flying saucer media impart compressive stress, improve the pre-plate finish and reduce porosity on plated parts.
Hardware and metal parts - fasteners, chains, stamped parts, die-castings, aluminium parts, cutlery, jewellery, tool bodies.
Grinding media and bearing applications - also used as milling / grinding media.
Compatible equipment - rotary vibrators, vibro mills, centrifugal disc and barrel finishing machines, tumbling and polishing barrels.
