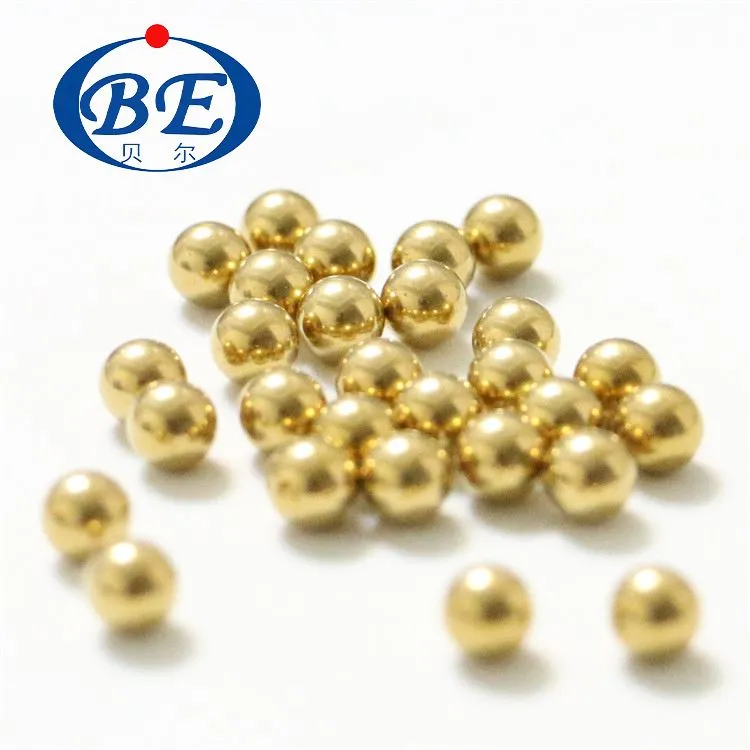

Solid Brass Sphere

Solid Brass Sphere

Item:Solid Brass Sphere
Material:H62 H65 brass balls
Size:1.588mm-25mm
Surface:polished and mirror surface
Grade:G100-G1000
Send Inquiry
Description

Solid Brass Sphere Description

(H62/65)Brass ball
The brass ball produced mainly used H62 copper,usually in kinds of electric, switch, carburetor.
Brass ball is soft so it is easy to be drilled,then usually used in valve and art ware.
Brass balls provide excellent electrical conductivity. At the same time,brass ball is soft so it is easy to be drilled,then usually used in valve and art ware.
HeNan Scole Ball Company manufactures H62 H65 brass balls,are widely used for the automotive and electronic industries.
Corrosion Resistance
Brass balls exhibit good corrosion resistance in environments where fuel oil, gasoline, kerosene, and alcohol are present and good resistance to water, gas and oil, and chemicals including benzene, butane, methyl acetone and ethyl chloride.

Diameter
0.3mm -- 50.8mm
Material
Brass ball H62, H65 / Copper ball 99%CU
Feature
Brass balls show fairish mechanical performance, good corrosion resitance, excellent electrical properties. They generate low frictions. Balls are provided in the passivated condition.
Application
Special valves, industrial pumps and valves, electronic devices, safety switches, heating units, appliances, furniture rails. They are used in the automotive, electronic and petrolchemical industry.
Chemical composition
Cu
Pb
P
Fe
Zn
So
Bi
60.5-63.5%
0.08%
0.01%
0.15%
Margin
0.002%
0.005%



Our Solid Brass Sphere

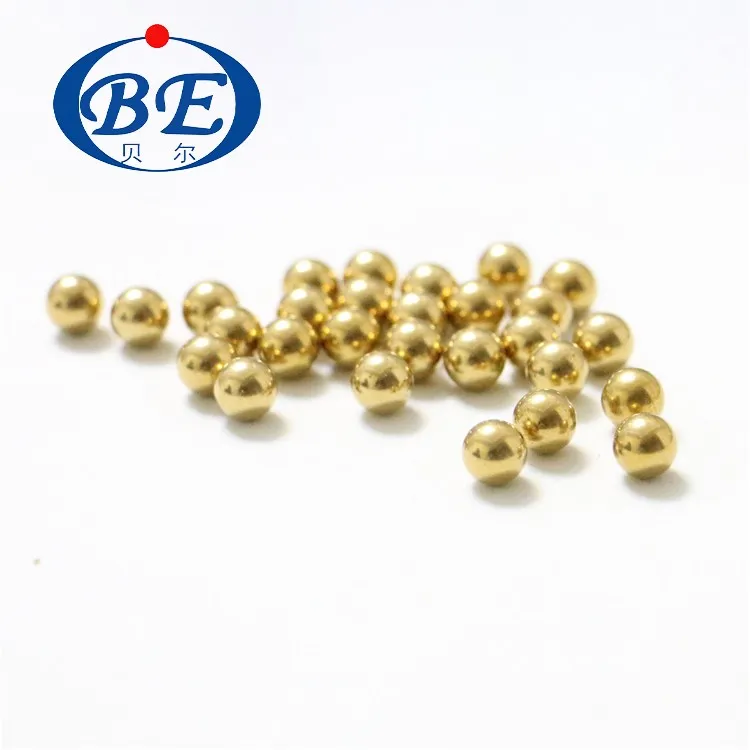

Solid Brass Sphere

Cold chain transportation of semi-finished food project


Solid Brass Sphere

Cold chain transportation of semi-finished food project

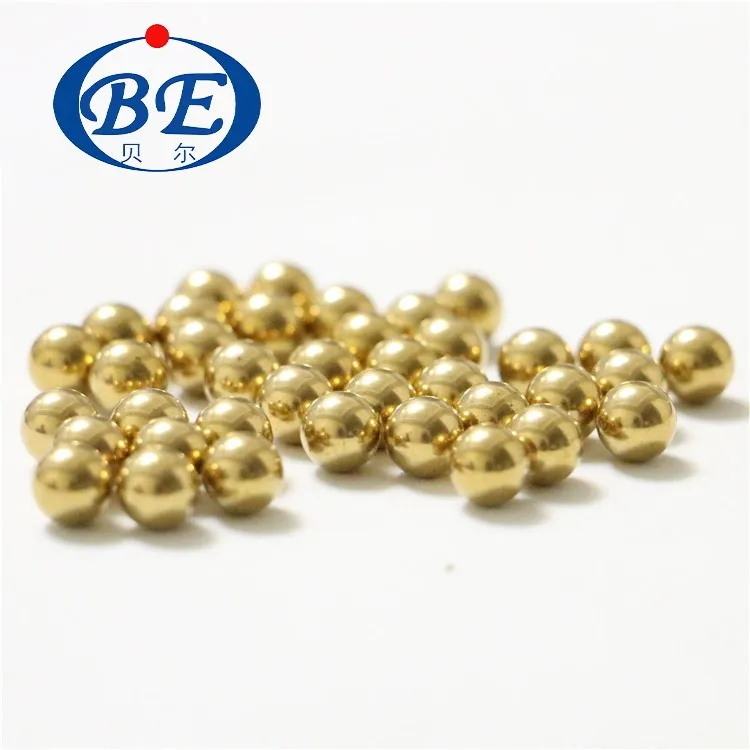

20mm Brass Ball

Cold chain transportation of semi-finished food project



Solid Brass Sphere Production Steps

Heading:
In the first step, heading machines cut wire into short lengths and form it into spherical shapes between dies.


Deflashing:
The flash line, a ridge left by the forming dies, is removed as balls roll between heavy,cast iron plates.

Soft Grinding:
Similar to deflashing, except that a grinding stone is used to improve precision.

Heat-treating:
Carbon steel balls are next carburized and hardened. Heat treatment imparts the desired hardness and case depth.

Descaling:
This step removes the residues and by-products from the heat-treating process.

Hard Grinding:
Slow, meticulous grinding assures proper sizing and sphericity, with tolerances as closeas ±.0001".

Lapping:
Several proprietary lapping processes can bring balls to the requirements of ISO 3290 Grade10 - 48.

Finishing:
Proprietary chemical and mechanical processes give the balls their final micro-smoothed finish, for increased wear resistance and product longevity.

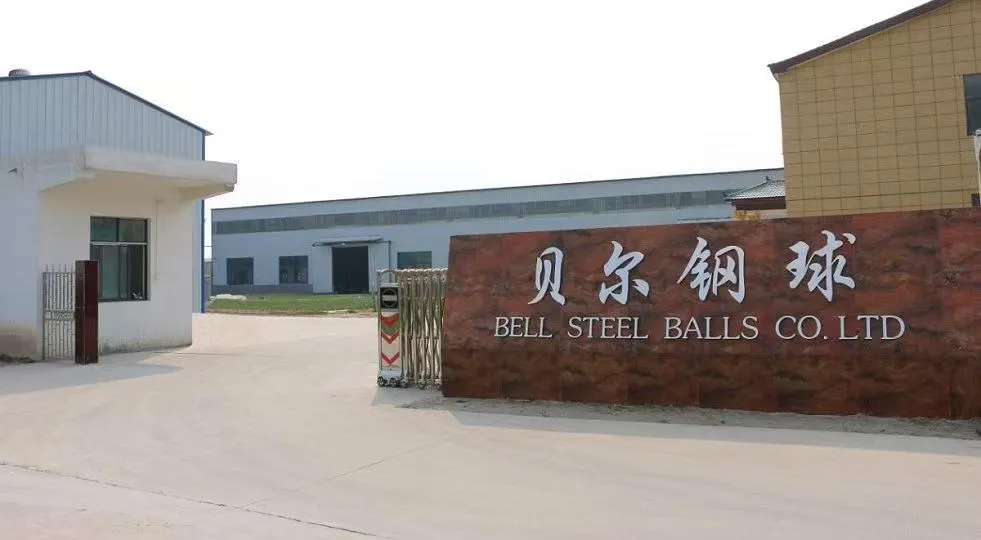

solid brass ball factory

Company profile



With more than 25 years experience, Kaifeng Bell is a professional solid plastic ball manufacturer in China.

Material: Acetal (POM), Polypropylene (PP), Nylon (PA PA66), PTFE(Teflon), PS, PEEK, Acrylic (PMMA), etc.

Size from 0.8mm to 100mm. Grade G0 G1 G2


We have two factories to produce our balls , one is Located in Henan province (cover 10000 square meters and with more than 200 sets machines), another is located in Shandong province (cover 5000 square meters and with more than 50 sets machines)



As plastic ball supply ,we also produce (304 316 316L 440C 420C) stainless steel ball, brass copper ball,(soda-lime&borosilicate) glass ball,Ceramic ball ,Tungsten Carbide Ball, sattelite steel ball,Aluminum Balls . Sizefrom 0.3mm to 100mm Grade from G5 to G1000



Solid Brass Sphere FAQ

1. What is solid brass used for?



Brass is commonly used in applications where corrosion resistance and low friction are required, such as locks, hinges, gears, bearings, ammunition casings, zippers, plumbing, hose couplings, valves, SCUBA regulators, and electrical plugs and sockets.



2.Is solid brass worth anything?



The scrap price for brass usually moves together with the scrap price for copper. When copper prices are high, brass is worth more.



3.Why is solid brass so expensive?



The higher the copper content, the more expensive the brass will be. Copper is a valuable metal, so brass with a higher copper content will have a higher price. On the other hand, if the brass has a higher zinc content, it will be less expensive



4.Will solid brass rust?
Brass does not rust as such; that is, it does not corrode in the same fashion as steel, as it does not contain iron. Brass does tarnish and degrade, due to either oxidation or a process known as dezincification. Oxidation happens in the same way as it does to other non-ferrous metals such as aluminum and copper
