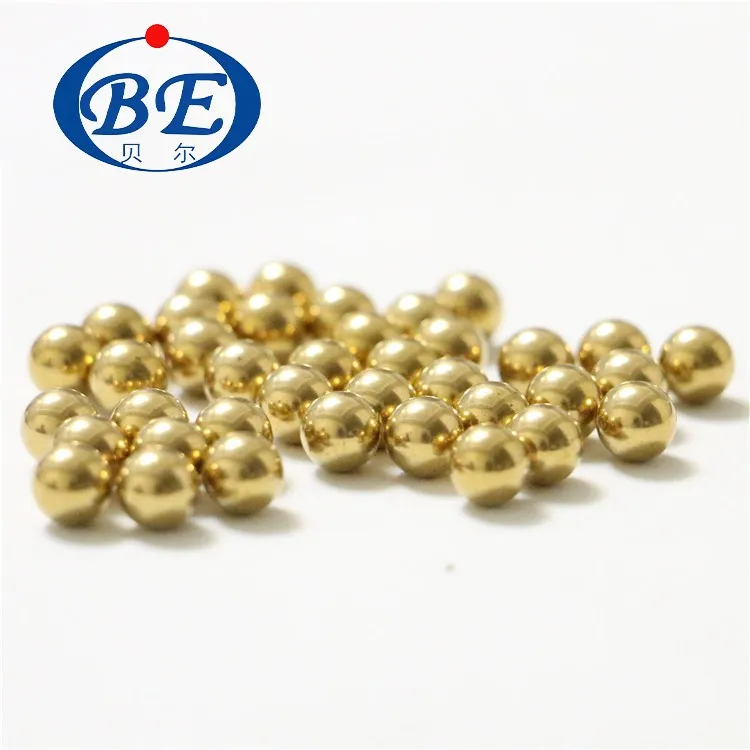

20mm Brass Ball factory Products Description
Kaifeng Bell supplies brass balls for electrical devices, petrochemical operations, and consumer products where electrical conductivity, corrosion resistance, and low friction are required. Available in sizes from 1.588mm to 25.4mm. Grades 200 through 1000.
1-Basic Information
| Material | H62 C28000 |
| Size Range | 0.35mm~200mm |
| Grade | G200 G500 G1000 G2000 |
| Corrosion Resistance | Good Corrosion Resistance |
| OEM Service | Drilling/ Threading |
2-Chemical Composition
| C28000 | |
| %Cu | 59.00 - 63.00 |
| %Zn | Balance |
| %Pb | 0.090 Max |
| %Fe | 0.070 Max |
3-Mechanical Properties
| C28000 | |
| Density | 8.49 g/m3 |
| Hardness | 20 - 28 HRC |
|
Tensile Strength |
72 - 87 PSI×103 |
|
Young's Modulus |
110 GPa |
Products Steps
Heading:
In the first step, heading machines cut wire into short lengths and form it into spherical shapes between dies.
The flash line, a ridge left by the forming dies, is removed as balls roll between heavy,cast iron plates.
Soft Grinding:
Similar to deflashing, except that a grinding stone is used to improve precision.
Heat-treating:
Carbon steel balls are next carburized and hardened. Heat treatment imparts the desired hardness and case depth.
Descaling:
This step removes the residues and by-products from the heat-treating process.
Hard Grinding:
Slow, meticulous grinding assures proper sizing and sphericity, with tolerances as closeas ±.0001".
Lapping:
Several proprietary lapping processes can bring balls to the requirements of ISO 3290 Grade10 - 48.
Finishing:
Proprietary chemical and mechanical processes give the balls their final micro-smoothed finish, for increased wear resistance and product longevity.
Company profile
With more than 25 years experience, Kaifeng Bell is a professional solid plastic ball manufacturer in China.
Material: Acetal (POM), Polypropylene (PP), Nylon (PA PA66), PTFE(Teflon), PS, PEEK, Acrylic (PMMA), etc.
Size from 0.8mm to 100mm. Grade G0 G1 G2
We have two factories to produce our balls , one is Located in Henan province (cover 10000 square meters and with more than 200 sets machines), another is located in Shandong province (cover 5000 square meters and with more than 50 sets machines)
As plastic ball supply ,we also produce (304 316 316L 440C 420C) stainless steel ball, brass copper ball,(soda-lime&borosilicate) glass ball,Ceramic ball ,Tungsten Carbide Ball, sattelite steel ball,Aluminum Balls . Sizefrom 0.3mm to 100mm Grade from G5 to G1000
Brass ball factory FAQ
Q:Free sample can be provided ?
A: We are a professional brass copper ball factory.
A: Generally it is 3-7days if the goods are in stock. it is according to quantity.
