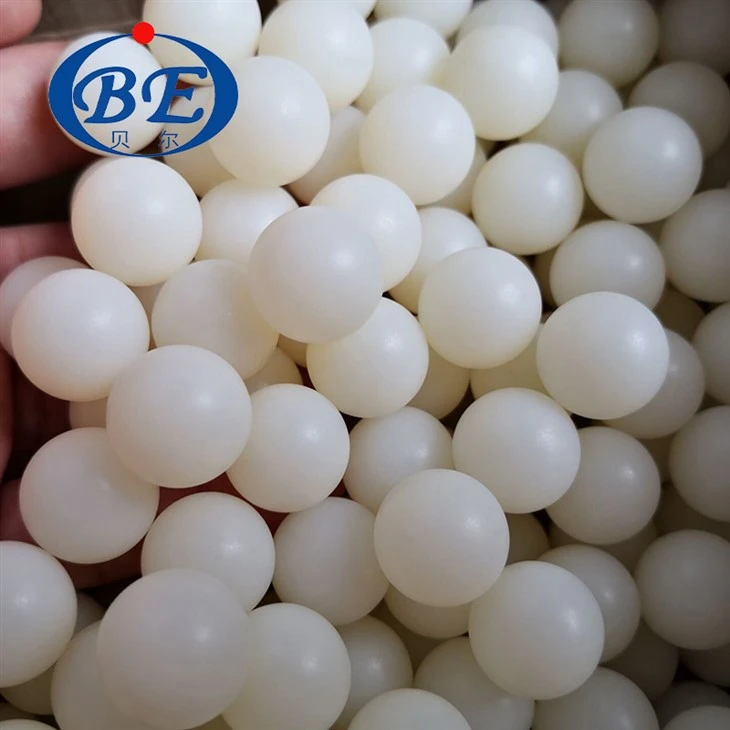

Nylon 66 Plastic Ball

What is a Nylon 66 Plastic Ball?

Nylon Balls are used in a variety of bearing, and seal applications. These balls are precision ground for tight tolerance & are made of solid, high-quality thermoplastic.

Semicrystalline thermoplastic Nylon 6/Nylon 6.6 polymer balls, they provide low weight, high corrosion, wear and abrasion
resistance. They are auto lubricant and with good ductility, toughness and electric insulating properties. Useful even for high
temperature applications. Nylon balls are insolvable into diluted mineral acids and in most organic acids. They are resisting to
alkalis, petroleum products, greases, inorganic salt solutions, low gradation alcohols, motor oil, transmission fluids, methanol,
ketones, esters. They do not resist to strong acids and basis.

PA PA6 PA66 PLASTIC BALL(Nylon)

Densiry:Around 1.1g/cm^3
Grade:G0-G3(0.01-0.05mm)
Feature:preferably the alkali metal,adapt to the neutral characteristics of petroleum products and all kinds of chemical products
Applications:Used in check valve, light load, the knob pull switch, low-cost

Product Name	Nylon (Polyamide) Plastic Balls
Material	NYLON 6/NYLON 6.6 (PA 6/PA 6.6)
Size	1.5mm-50mm
Grade	G0-G3 (0.01-0.05mm)
Color	colorful Upon request, natural
Density	Around: 1.1g/cm3
MOQ	10000pcs
Application	Special valves, low load bearings, flow meters, switches, handgrips, medical and industrial applications.

POM PLASTIC BALL (Delrin).
Densiry:1.4g/cm^3
Grade:G0-G3(0.01-0.05mm)
Feature:similar to nylon slightly, harder larger density
low water absorption,the most hard and wear resistant materials.Applications:POM ball table,drawer slide device bearings, rollers, valves, electronic apparatus, sailing apparatus.

Product Name	Delrin pom Plastic Balls
Material	Delrin (Polyoxy-Methylene), POM, Acetal
Size	0.8mm-100mm
Standard Size	2/32'' 1/8'' 5/32'' 3/16'' 1/4'' 5/16'' 3/8'' 7/16'' 1/2'' 9/16'' 5/8'' 3/4'' 7/8'' 1'' 1-1/8'' 1-1/4'' 1-3/8'' 1-1/2'' 1-3/4'' 2''
Grade	G0-G3 (0.01-0.05mm)
Color	Natural, off-white or colored
Density(g/cm³)	round: 1.4g/cm3
Solid or Hollow	Solid
Temperature Resistance	40~130 ºC
Technology	Hot Pressing Molding,Injection Molding
Feature	Delrin (Polyoxy-Methylene), also known as Acetal, Polyacetal, and POM, is an engineering thermoplastic commonly used for precision parts that require high strength, hardness and rigidity. It is a tough material with a low coefficient of friction and high abrasion resistance. It has good electrical and dielectric properties, low water absorption. Naturally white in color it does accept opaque colors well and can be polished to a shine. Delrin is typically difficult to bond but can be bonded with epoxies, polyurethanes and cyanoacrylates (superglue). It has good chemical resistance but is sensitive to mineral acids, chlorine, and alkaline degradation.
Application	Application

PTFE PLASTIC BALL

Densiry:Around 2.2g/cm^3
Grade:G0-G3(0.01-0.05mm)
Feature:excellent chemical stability, resistance to corrosion,sealing, high lubricity non-tackiness,most corrosive resistant possessed electrically nsulating material
Applications:Particularly suitable for use in cryogenic liquids and acids under the conditions of the instrument.

Product Name	PTFE Teflon Balls
Material	Teflon balls (polytetrafluoroethylene)
Size	1mm-60mm
Grade	G0-G3 (0.01-0.05mm)
Color	colorful Upon request, natural
Density	Around: 2.2/cm3
Feature	Low weight fluorinated semicrystalline polymer balls, they provide exceptional corrosion resistance and are used into high temperature applications. Mechanical and wear resistance properties are lower than other plastic materials. Good electric insulators, they are auto lubricant. Teflon properties change if they are exposed to electromagnetic radiations.
Application	Ball bearings, special valves (very aggressive environments), measurement and medical instruments, appliances. They are used into foodstuff, paper, chemical, electronic, pharmaceutical industry.

Polyetheretherketone (PEEK) plastic ball

Densiry:Around 1.3g/cm^3
Grade:G0-G3(0.01-0.05mm)
Feature:Low creep,Excellent friction performance,Especially wearable,Excellent chemical resistance,Flame retardant,Non-toxic
Applications:High-end machinery and aviation technology

About US

With more than 25 years experience, Kaifeng Bell is a professional solid plastic ball manufacturer in China. Material : Acetal (POM), Polypropylene (PP) ,Nylon (PA PA66) ,PTFE(Teflon) ,PS ,PEEK, Acrylic (PMMA) , etc. Size from 0.8mm to 100mm. Grade G0 G1 G2

We have two factories to produce our balls , one is Located in Henan province (cover 10000 square meters and with more than 200 sets machines), another is located in Shandong province (cover 5000 square meters and with more than 50 sets machines) As plastic ball supply ,we also produce (304 316 316L 440C 420C) stainless steel ball, brass copper ball,(soda-lime&borosilicate) glass ball,Ceramic ball ,Tungsten Carbide Ball, sattelite steel ball,Aluminum Balls . Sizefrom 0.3mm to 100mm Grade from G5 to G1000

Quality Assurance

Our technical engineer has over 30 years experience . After finished to produce balls, we will take sample balls from the batch are sent for final audit to check for surface roughness, roundness, waviness, lot size variation and hardness in a sophisticated laboratory, according to specified control plans and dock audit procedures. Once all requirements are met, a test certificate is then prepared for the customer.

Nylon 66 Plastic Ball FAQ

1.What is a nylon ball?

Nylon Balls are used in a variety of bearing, and seal applications. These balls are precision ground for tight tolerance & are made of solid, high-quality thermoplastic.

2.What are nylon balls used for?

Nylon Balls (Zytel®, Polymide) are used in check valves, light load bearings, knobs and toggle switches and other applications where low cost and resiliency are more important than hardness. Nylon has good resistance to alkalis, petroleum products and various mild chemicals.

3.Is nylon a plastic?

Nylon is a strong, stiff engineering plastic with outstanding bearing and wear properties. It is frequently used to replace metal bearings and bushings, often eliminating the need for external lubrication.

4.What are plastic balls used for?

Because they are quiet, plastic balls are often selected for use in office furniture, bearings, medical products, and similar applications. Plastic balls are also used extensively in flow control applications, in pharmaceutical, food processing, and chemical processing equipment.

5.Why is nylon expensive?

Nylon is more expensive than polyester because the production process is more complex and uses more energy and raw materials.

6.Is nylon plastic good or bad?

In daily use, nylon is not considered toxic. However, during manufacturing or incineration, it can release harmful byproducts like formaldehyde or nitrous oxide.
